You'll need high-speed cameras, LED strobes, a Raspberry Pi for processing, and infrared lighting to build your own launch monitor. Set up requires 17 feet of depth, 12 feet of width, and 9-10 foot ceilings. Position your monitor 7 feet behind the ball and 10-12 feet from the impact screen. Budget $350-$450 for DIY builds versus $25,000+ for premium units like TrackMan. You'll also need Windows 10/11 and software like GSPro ($250 annually). Keep exploring to uncover the complete setup process and money-saving strategies.
Building your own golf launch monitor might seem overwhelming at the beginning, but breaking it down into vital components makes the project totally manageable. You'll need five indispensable parts to create an accurate system.
First, you'll need cameras and lighting – high-speed cameras capture ball flight while LED strobes freeze motion at impact. A Raspberry Pi microcomputer processes the data you're collecting. You'll also need infrared lighting for consistent ball tracking, especially indoors where natural light varies.
The electronics package includes sensors, wiring, and calibration software to tie everything together. Your computer must have minimum 16GB of RAM and a capable graphics card to handle the processing demands effectively. Consider that photometric technology works best for indoor setups compared to radar-based systems. Beyond the core electronics, you'll need hitting mats and impact screens to complete your setup for ball containment and surface consistency. The important point is that most DIY builds cost between $350-$450, which beats commercial options costing thousands! Your biggest challenge won't be finding parts, but ensuring proper camera positioning and lighting setup for accurate readings.
Once you've gathered all your components, you'll need to figure out where to actually set up your DIY launch monitor – and this isn't just about finding an empty corner in your garage. You'll need serious space to make this work properly.
Start with the basics: you need at least 17 feet of room depth and 12 feet of width. Here's why – you need 10 feet from your ball to the screen, plus 7 feet behind you for your backswing. Don't forget that 9-10 foot ceiling height, or you'll be hitting light fixtures instead of golf balls!
Your monitor placement depends on the type you're building. Photometric systems sit beside the ball, while radar-based monitors need 6-10 feet behind you. Take some practice swings in your designated area before finalizing the setup to ensure you have adequate room for a comfortable swing.
Consider adding a width of 14 feet to accommodate both left-handed and right-handed players if multiple people will be using your setup.
Make sure to install proper ventilation in your setup space, as extended practice sessions can quickly make the room uncomfortable and affect your concentration.

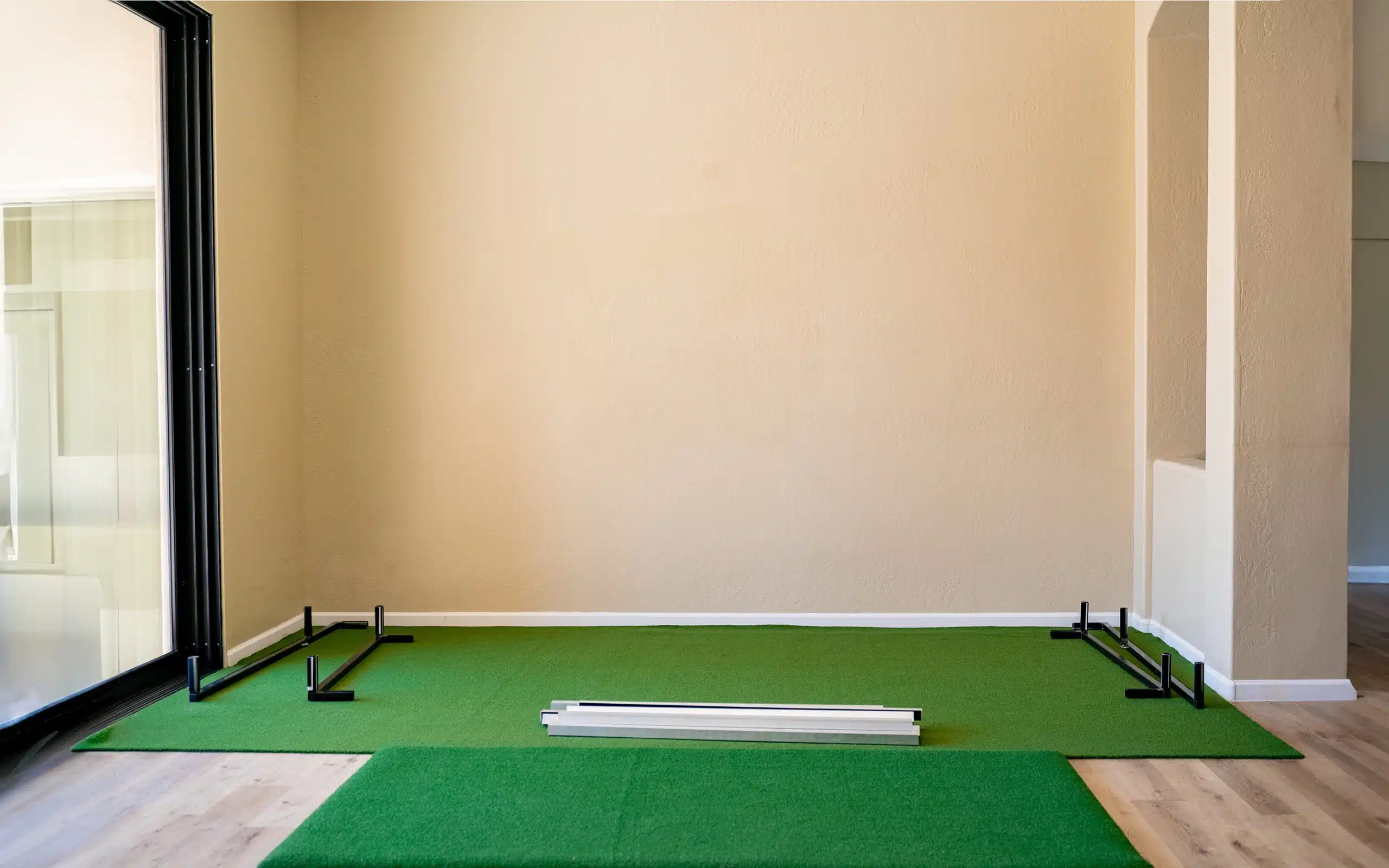

Now that you've got your space mapped out, it's time to tackle the backbone of your launch monitor setup – building the frame that'll hold your impact screen. You'll want 1-inch EMT pipes cut 1/8" to 1/4" larger than your screen dimensions for proper tension. The key point is: start assembling from the floor up, back to front, for maximum stability.
Connect those EMT pipes fully into fittings before tightening with a 6mm hex bit – this prevents annoying misalignment issues! Position collar fittings with U-shaped tabs facing inside, and make sure hinged-angle fittings have mini-pipes pointing inward. Verify squareness during assembly by measuring diagonal distances across corners to ensure your frame is properly aligned.

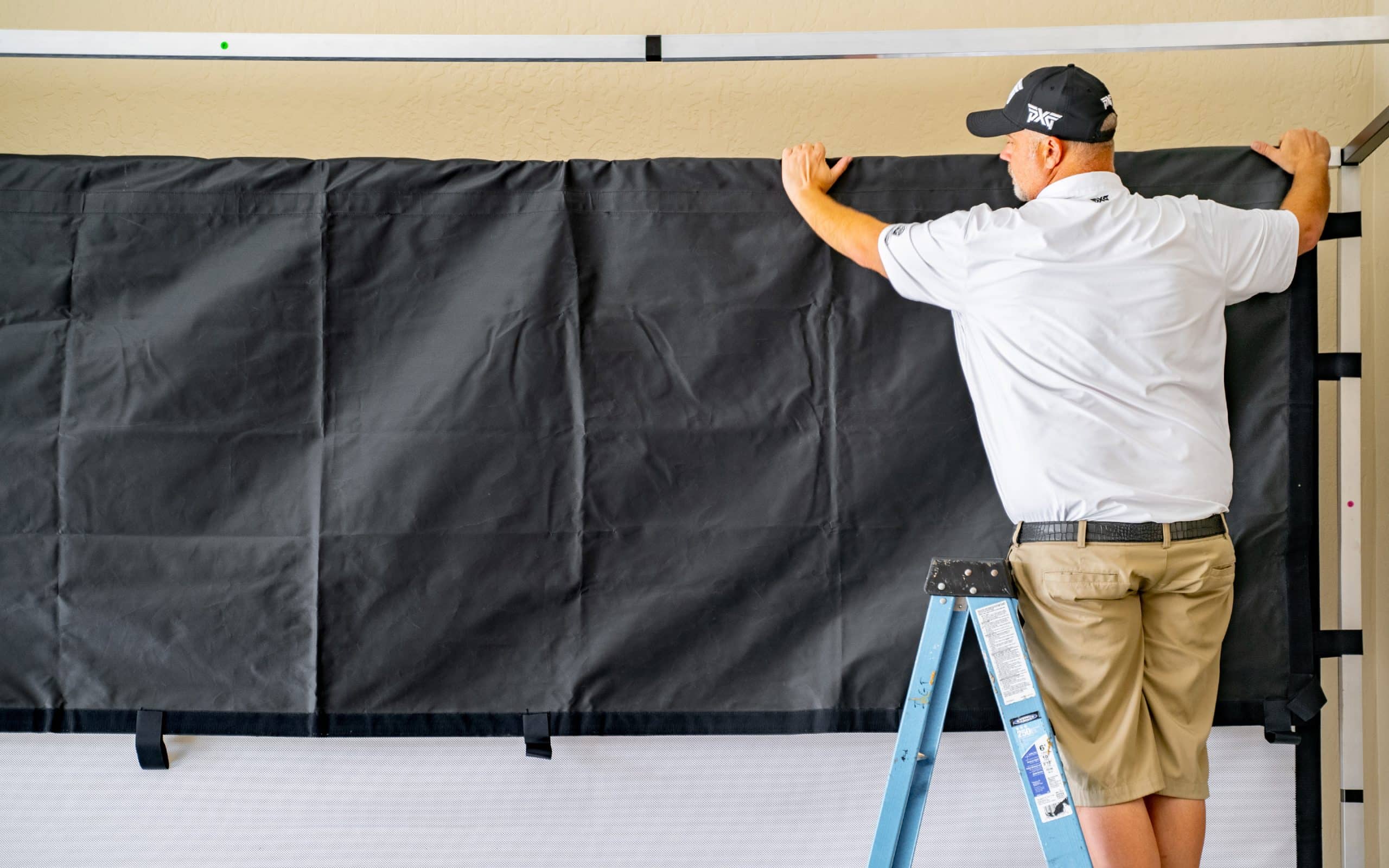

For screen attachment, ball bungee cords through grommets work like a charm. Keep it taut but don't overstretch – you're not trying to launch the screen itself! Maintain at least a foot of distance between the wall and the screen to prevent balls from escaping. However, many builders recommend using 2x4 lumber instead of EMT pipes for superior frame stability and durability.
Where you place your launch monitor can make or break your entire setup – get this wrong, and you'll be scratching your head wondering why your 7-iron is showing driver distances! Position your monitor about 7 feet behind the ball with a clear line of sight to your hitting area. You'll want at least 10-12 feet between the ball and your impact screen for accurate readings.
Here's the essential part: keep everything level. Align your launch monitor horizontally with your hitting mat – tilted sensors mean wonky data. Before each session, run the calibration routine through your device's app (usually takes under a minute). This balances the internal sensors and prevents those "did I really hit it 350 yards?" moments. Regular software updates can significantly improve your launch monitor's accuracy and fix any distance discrepancies you might be experiencing. Recalibrate whenever you move locations or notice environmental changes affecting your readings.
Modern DIY launch monitors capture critical swing metrics including clubhead speed, ball speed, and launch angle to help optimize your performance. Watch out for reflective surfaces within the camera's view, as these can interfere with the monitor's ability to track the ball properly.
While your launch monitor hardware captures the data, your computer converts those raw numbers into a full golf simulation experience. You'll need Windows 10 or 11 to run most simulator software like GSPro, which offers the most realistic physics and 4K graphics available.
Start by purchasing your GSPro license key, then download and install the software. The important part—you'll also need connector software that acts as a bridge between your launch monitor and the simulator. Create desktop shortcuts for both applications to optimize your setup process.
Your DIY system will likely connect via USB or Bluetooth, depending on your sensor configuration. The connector app handles real-time data transmission, so there's minimal delay between your swing and seeing results on screen! For the most reliable connection, ensure your launch monitor displays a flashing blue light during the pairing process, which indicates it's ready to establish communication with your computer.
GSPro provides comprehensive video tutorials and step-by-step instructions to help you complete the setup process smoothly. Professional systems like TrackMan achieve 90% accuracy using similar data transmission principles, so your DIY setup can deliver remarkably precise measurements when properly configured.
Every DIY golf launch monitor project starts with one important question: how much money are you willing to spend? Budget options like the Garmin R10 cost $500-$2,000, while premium units like TrackMan 4 can hit $25,000+. The key point is—you can build a complete setup for under $1,000 or go all-out for $11,000+.
Smart money moves include buying used launch monitors (Garmin R10s go for $400-$600 on auction sites) and starting with free software before upgrading to platforms like GSPro at $250 yearly. Don't forget the extras: hitting mats and nets add $300-$1,000, plus you'll need a decent computer.
Pro tip: prioritize your launch monitor and hitting surface initially, then upgrade projectors and accessories later! Beyond the initial hardware investment, factor in ongoing costs like software subscriptions that typically range from $200-$750 annually for course simulation and regular updates.
You'll find DIY launch monitors are less accurate than professional simulators, especially for spin rate and club face measurements. While your homemade unit might nail carry distance pretty well, it'll struggle with complex metrics that pros handle easily. A £3,000 FlightScope Mevo+ gets close to a £13,000 Trackman's ball data accuracy, but you'll sacrifice precision in other areas for that affordability.
Yes, you can absolutely use your DIY launch monitor outdoors! Radar-based systems work great in any weather since they don't rely on lighting. Camera-based monitors need good daylight or infrared lighting for night practice. Place radar units 8-10 feet behind your ball, while photometric devices can sit closer. Wind and rain might affect accuracy, so stable placement on level ground is essential for reliable readings.
You'll need to clean your optical sensors and camera lenses monthly with microfiber cloths and lens cleaner to maintain accuracy. Check all cables for wear and dust your computer components with compressed air regularly. Keep everything dry and avoid temperature swings that mess with electronics. Schedule seasonal deep cleans and software updates. Store components in protective cases when not using them.
Start by checking if Bluetooth or Wi-Fi is enabled on both devices—you'd be surprised how often that's the culprit! Remove old pairings and re-pair from scratch. Keep devices within 30 feet with clear line-of-sight. Restart both devices after any updates, and make sure you're using the manufacturer's recommended app. Check for interference from microwaves or Wi-Fi routers nearby.
Yes, there are several safety concerns you need to address. You'll need at least 9-foot ceilings and 10-12 feet of width to swing safely without hitting anything. Install protective netting to catch balls and prevent rebounds that could injure you. Keep your launch monitor out of the swing path so you don't accidentally smash it. Also, watch for electrical interference from fans or fluorescent lights that could cause malfunctions.
You've got everything you need to build your own golf simulator! While it'll take some patience and around $2,000-4,000, you'll save thousands compared to commercial setups. Start with your frame and screen, then work your way up to the tech components. Don't rush the calibration process—it's what separates a decent setup from an awesome one. Your garage will never be the same again!
