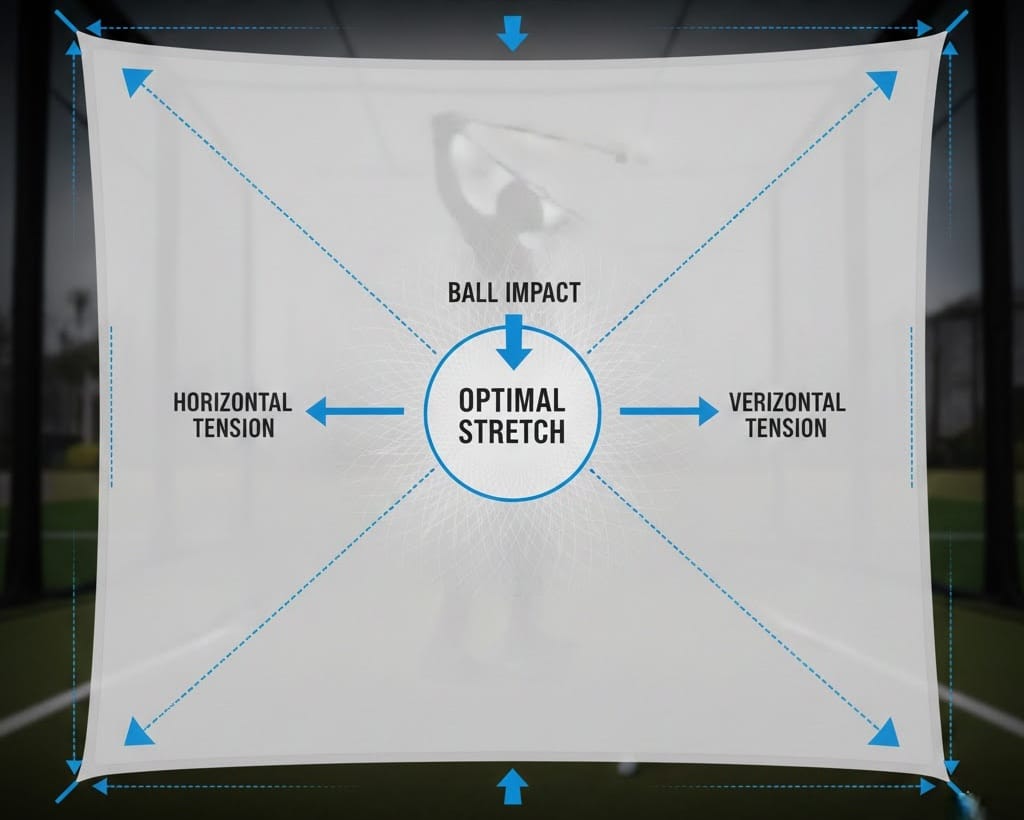

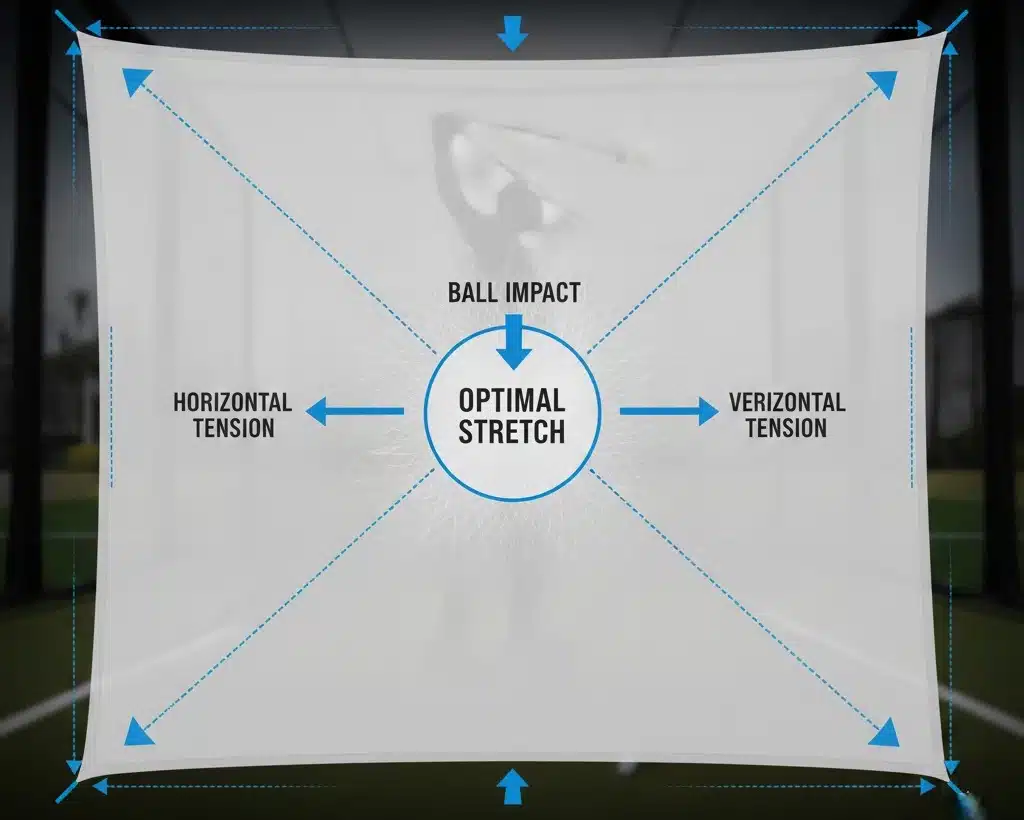

Your impact screen needs just enough tension to absorb a golf ball's impact without creating dangerous bounce-back or saggy pockets that wreck the material. Here's the sweet spot: when you hit a driver shot, the ball should only rebound 1-3 feet, and the screen should move about one inch backward on impact. Too tight creates a trampoline effect that sends balls rocketing back at you, while too loose causes wrinkles and tears at the eyelets. Getting this balance right makes your screen last twice as long, and there's a specific tensioning pattern that prevents most common problems.
How do you know if you've nailed the sweet spot with your golf screen tension? Start with a visual check—your screen should look smooth and flat, like a perfectly made bed, without any wrinkles or sagging spots. The key point is: if you see waves or dips, you're looking at under-tensioning. Next, hit some balls at different swing speeds. The screen should absorb impact with just a small movement, then settle flat again. You're after minimal bounce-back, not a trampoline effect that sends balls ricocheting dangerously. Check your grommets and hardware too. If they're straining or the seams look stressed, you've cranked things too tight. The projected image quality tells you everything; distortion means it's time to adjust! Ensure your top row alignment resembles a confident, natural smile rather than a harsh straight line. When checking the mounting area, use a 24-inch bubble level to verify that your hardware remains perfectly aligned after initial ball impacts.
When your screen tension sits outside the ideal range, you're basically lighting money on fire, because both over-tightening and under-tightening create their own paths to destruction.
Crank it too tight, and you've built yourself a trampoline. The ball rebounds straight back at you, while stress concentrates on mounting points, tearing through eyelets and splitting material along tension lines. It's like stretching a rubber band until it snaps.
Go too loose, and the screen sags into pockets where your ball hammers the same spots repeatedly. This uneven force distribution accelerates wear in those low areas, causing material degradation way faster than normal. Plus, that extended contact time between ball and fabric? It magnifies every impact, turning your screen into swiss cheese within months instead of years. The sagging also distorts the projected image, creating visual inconsistencies that ruin your simulator experience.
The correct tension should allow you to push your hand 25cm into the center of the screen. This specific tension creates the perfect balance between impact absorption and durability.
Getting your screen tension dialed in correctly isn't rocket science, but it does require a methodical approach and a bit of patience. Start by establishing your top row initially; this becomes your structural backbone. Attach it evenly with confident tension, making sure everything stays straight across. Next, work the sides with mirror-alignment between left and right edges, counting holes as you go. The important part is: use a loop pattern (top → right → bottom → left → repeat) rather than completing one side entirely. Your bottom bar needs substantial weight—think steel or sand-filled PVC, to pull everything down and eliminate waviness. Consider using pliers to manage tight attachment points, especially when working through eyeholes that require extra leverage. Ultimately, test with actual shots at different swing speeds, watching how the ball bounces back, and checking for wrinkles or sagging spots.
Finding the sweet spot with screen tension is tricky because you're walking a tightrope between two equally frustrating problems.
Pull it too tight, and your screen becomes a springboard that launches balls back at dangerous speeds. You'll also see splits along tension lines where the material can't handle the stress. The key point, overtightened screens wear out fast because eyelets get ripped out and the fabric tears during impacts.
Go too loose, and you're dealing with saggy wrinkles that create unpredictable ball behavior. The ball stays in contact with the fabric longer, which accelerates wear. Plus, your simulator image gets distorted where the screen droops. Loose screens also concentrate impact stress in specific areas rather than distributing force evenly across the surface. You should be able to push your hand in the center and move the screen 25cm back when checking for proper slack.
The fix? Your screen should move about one inch backward when struck, and a driver shot should bounce back just 1-3 feet.
Your choice of golf balls and how far you position yourself from the screen determines whether your setup lasts five years or five months. Foam balls extend screen life dramatically, but if you're tracking real data, you'll need actual golf balls. The key point is: positioning your tee 10-12 feet from the screen prevents ricochet damage in residential setups, while premium installations benefit from extending that to 16 feet or more. Scratch golfers hitting 12 greens per round generate consistent impact patterns that spread wear evenly. Higher handicappers? You're hitting just 11% of fairways at the 100-golfer level, which means errant shots concentrate stress in specific screen areas. Adding that recommended 7 feet behind your tee creates safe follow-through space while reducing off-center hits that tear screens prematurely. Overhead launch monitors eliminate the need to reposition equipment between right- and left-handed golfers, preventing accidental screen strikes during setup changes. Practicing with deliberate target distances rather than mindless hitting reduces wild mishits that cause premature screen wear in concentrated areas.
While most golf simulator owners obsess over launch monitor accuracy and software updates, they're missing the maintenance task that'll actually make or break their setup's longevity: screen tension.
Check your screen weekly with a quick visual scan for sagging or edge ripples. Monthly, do a thorough inspection alongside your regular surface examination. The point is: you should re-tension after intense use sessions if you notice stress concentration in impact areas.
Watch for subtle sagging across the surface; that's uneven force distribution. Ripples near edges signal fabric stretching, while wrinkles concentrate impact stress and accelerate wear. On the flip side, over-tension creates excessive bounce-back (think trampoline effect), risking tears at grommets. Proper tension also helps distribute impact forces evenly across the entire screen surface. Adjust tension every 1-2 months as routine care, similar to calibration frequency.
You can't use bungee cords instead of grommets; they work together! Grommets are the reinforced holes punched into your screen fabric, while bungee cords thread through those grommets to attach the screen to your frame. Think of grommets as the anchors and bungees as the stretchy connectors. You need both: grommets provide durable attachment points, and bungees deliver the elasticity that absorbs ball impacts and prevents damage.
Yes, humidity definitely affects your screen tension over time. High moisture causes the fibers to soften and expand, leading to sagging and uneven tension that creates wrinkles. The fabric can lose up to 15% of its strength when humidity combines with UV exposure. You'll notice the screen settles faster in humid climates, and those shipping creases become more stubborn. Running a dehumidifier helps maintain consistent tension and prevents mold growth that degrades the material.
No, you don't need to adjust your screen tension between driver and iron shots. The fact is, your impact screen absorbs the ball's energy regardless of club type. While drivers create faster ball speeds (around 165 mph versus 120 mph for a 7-iron), a properly tensioned screen at 150-175 pounds handles both similarly well. The screen's job is catching balls, not replicating turf interaction!
You can't really repair stretched grommets themselves, but you've got options! Grab a $5 grommet kit from Harbor Freight and install fresh grommets right next to the damaged ones, just cut new holes about an inch over. Alternatively, use tarp clips to grip the fabric without needing grommets at all. They're adjustable for tension and work great as a quick fix until you're ready for a proper grommet replacement.
Projector height doesn't directly impact your screen tension needs. The fact is, tension adjustments depend on factors like the space behind your screen, floor surface, and how far you're standing from it, not where your projector sits vertically. Whether you've mounted it 8 feet or 14 feet high on the ceiling, you'll still want that 1-3 foot bounce-back distance from driver shots to dial in proper tension.
Your screen's tension makes or breaks your simulator experience, and now you've got the knowledge to get it right. Check that tension regularly, watch for those warning signs we covered, and don't wait until you see bounce-backs to make adjustments. A properly tensioned screen will save you hundreds of dollars in replacements and give you accurate data every session. Fifteen minutes of maintenance beats buying a new screen any day!
